Screened Cables

Cables ideal for use in high performance audio, microphone, data transmission or instrumentation applications.

Semi-Conducting Thermo-Plastic Screened (Low Noise)

A single conductor, twisted pair and four conductor arrangements are available
  1. Each core consists of 7 strands of 0.2mm tinned annealed copper wire and insulated with polythene
  2. A 7/0.2mm drain wire is included under the screening
  3. The core and drain is screenend with thin continuous tube of high conductive thermoplastic
  4. Overall sheathed with grey PVC

Overall Braid Screen

Standard Round, Single Type - 16/0.2mm
  1. Each core consists of 16 strands of 0.2mm tinned annealed copper wire and insulated with a PVC compound
  2. Overall braid screening
  3. Overall sheathed in grey PVC

Individual Lapped Screen

  1. Each core contains plain annealed copper wire and PVC insulation
  2. Each core is individually lap screened
  3. Cores placed side by side and sheathed together with grey PVC
  4. Appearance is in a figure ' 8 ' format

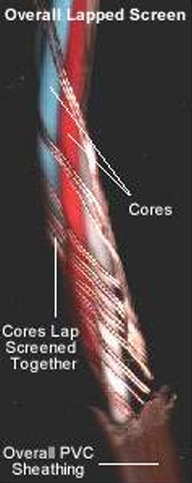

Overall Lapped Screen

  1. Each core contains plain annealed copper wire and insulation with PVC
  2. All cores lap screened together
  3. Overall sheathed in grey PVC
